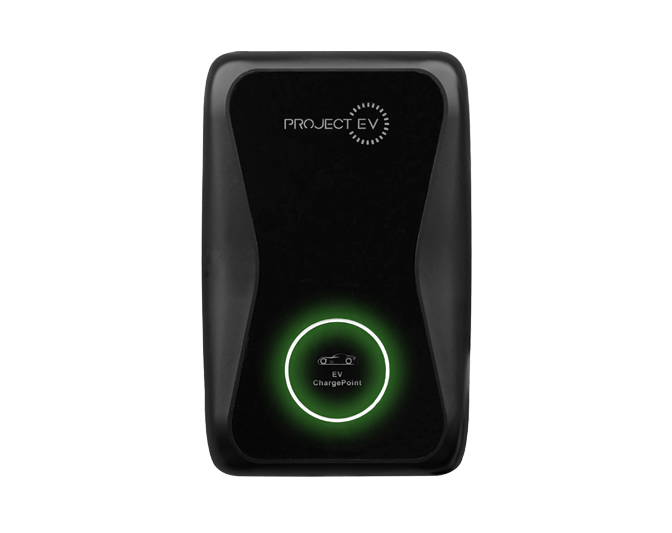

EVA-07S-SE
7.3kW Pro Earth Wall AC Charger Single Gun – The FUTURE OF EV CHARGING
The Project EV EVA-07S-SE is a single-phase, fast AC electric vehicle charger, that comes with built-in Pro Earth protection, meaning the charger does not require the addition of a costly earth spike installation. With the government grant of £350 come to an end we’ve worked with local suppliers at Green Bros to get the best price for a more cost effective top quality EV charger to make it affordable for every household.
Affordability
From only £779 + VAT, this 7.3kW single phase EV Charger is affordable & packed with features
Our 7.3kW pro earth charging unit comes packed with features as well as a market-leading 5 year warranty. With a compact sleek design and solar compatibility; this charger also has time-shifting capabilities giving you the opportunity to save £100’s per year*. With the charging unit’s integrated cable locking feature you can ensure total protection, granting safety and convenience tethering the charger, cable, and vehicle all together securely.
Brought to you in conjunction with GreenBros, Plumbing & Electrical Suppliers
With a CT clamp included as standard, to enable dynamic load management and solar capabilities via the charger settings, the EVA-07S-SE and EVA-07S-SE-C is ready out of the box and perfect for any domestic electric vehicle charging. Optional ground mounts (EV-GMEVA-S-2) & optional floor stands (EV-FLRSTAND) are available to purchase. For more information and enquiries, just ask.
5 YEAR WARRANTY
SOLAR COMPATIBLE
SMART APP CONTROLLED
OFF PEAK TIME SHIFTING
TYPE 2 SOCKET
INTEGRATED RCBO ISOLATION
CABLE LOCK SYSTEM
PRO EARTH
no spike required
A tethered option is available for an extra £158.00 + VAT
Plug & Charge
Project EV’s ethos is to make charging electric vehicles easy and stress free for all. With the Plug and Play mode you do not require any additional software or applications to control your EV charge point, you simply plug your car into a Project EV device, and the charge begins.

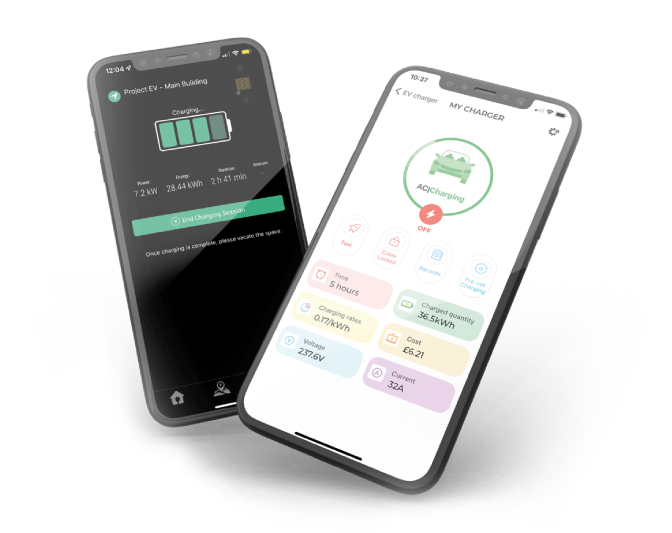

Project EV App
The FREE Project EV App allows you to choose and customise charging rates, prioritise off-peak charging to maximise savings (including via a solar charging mode) and create charging records; so you can see and control all your data.
Project EV Pro App
The Project EV Pro App is a unique EV charging platform, providing you the ability to utilise public charging capabilities and manage and control multiple chargers – from which you can generate a fluid revenue stream.
Input & Output
| Input Amps | 32a Single Phase |
| Input voltage | 230V AC |
| Input frequency | 50/60HZ |
| Output voltage | 230V AC |
| Max. output power | 7.3KW |
| Max. output current | 32A |
| Charging interface type | IEC 62196-2, Type 2 |
Protection
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Earth leakage protection | Yes |
| Over-temp protection | Yes |
| Surge protection | Yes |
| PEN fault protection | Yes |
| Anti Tamper Switch | EVA-07S-SE-C ONLY |
Function & Accessory
| Ethernet/WIFI/4G | Yes/Yes/Opt |
| Outlet Type | Type 2 (socket) |
| RCBO | Type A +6mA DC fault current protection(Equivalent to Type B) |
| LED Indicator light | Yes |
| Emergency stop button | Yes |
| Solar Compatible | CT Clamp Install Required |
| Dynamic Load Management | Opt. CT Clamp Required |
Working Environment
| Protection degree | IP65 |
| Environment temperature | -25ºC~+50ºC |
| Relative humidity | 0-95% non-condensing |
| Cooling | Natural air cooling |
| Standby power consumption | ＜8W |
| IK Rating | IK10 |
Mechanical
| Dimension (W/H/D) | 240/380/145mm |
| Weight | ＜5KG |
Mounting & Accessories
| Wall-mounting | Standard |
| Floor-pole | Opt. EV-FLRSTAND |
| Ground-mounting | Opt. EV-GMEVA-S-2 |
Certification
| CE, UKCA | Yes |
| SA8000 Accredited | Yes |
| OZEV Approved | Yes |
